Application case of 3d digital printing implanting technology in the dental clinic - Primary restoration of dental implant surgery

Views:324     Author:Doctor wu     Publish Time: 2018-11-24      Origin:Site

Application case of 3d digital printing implanting technology in the dental clinic

(Primary restoration of dental implant surgery)

Second stage restoration


Basic Information Of The Patient:


Name: xxx

Gender: Female

Age: 42

Complain: Tooth loss

Current condition: Tooth loss cannot eat, bleeding when brush, require solution.


Basic_information_of_patients_CDL


Intraoral Examination(A zone=Right upper jaw、B zone=Left upper jaw、C zone=Left lower jaw、D zone=Right lower jaw)

  • Poor oral hygiene, accumulation of calculus, three-degree loosening of the entire mouth

  • Periodontitis causes severe absorption of the upper and lower jaws

  • A zone A4-A6B zone B2C zone C2-C4D zone D2-D3 lost

  • A zone A1-A3A7B zone B1B5-B7C zone C1C5-C7D zone D1D4-D8 all with III°loosen


Photos of preliminary oral diagnosis

Photos_of_preliminary_oral_diagnosis

Photos_of_preliminary_oral_diagnosis (2) Photos_of_preliminary_oral_diagnosis (3)

Photos_of_preliminary_oral_diagnosis (4) Photos_of_preliminary_oral_diagnosis (5)


CT showed that the alveolar bone of the whole mouth was horizontally absorbed to 1/3 of the root tip

CT_1


Treatment Plan (A zone=Right upper jaw、B zone=Left upper jawC zone=Left lower jawD zone=Right lower jaw

1、Full mouth periodontal cleaning/scraping to remove plaque

2、Remove all loosen teeth

3、Take an impression for surgical guider

4、Adapt One day apple implant technology

5、Impant A1、A4、A6、B3、B6、C2、C5、D2、D5

6、Use Temperorary restoration after sergery

7、The implant is covered with abutments after 3 monthes

8、Malo Bridge fixed restoration + zirconia all-ceramic restoration


Implants(A zone=Right upper jaw、B zone=Left upper jaw、C zone=Left lower jaw、D zone=Right lower jaw)

A4 build 3.5*12mm, upper Angle base station (17 degrees)

A6 is implanted with 4.0*10mm upper straight base platform

A1 is implanted 3.5*10mm, and the upper Angle base platform (30 degrees) is required at the later stage.

B3 implant 3.5*12mm, upper Angle base (17 degrees)

B6 implant 3.5*12mm, upper Angle base platform (30 degrees)

C2 was implanted with 3.5*12mm upper straight base platform

C5 implant 3.5*12mm, upper Angle base platform (30 degrees)

D2 was implanted with 3.5*12mm upper straight base platformD5 implant 3.5*12mm, upper Angle base platform (30 degrees)


Digital_Positioning_Scan

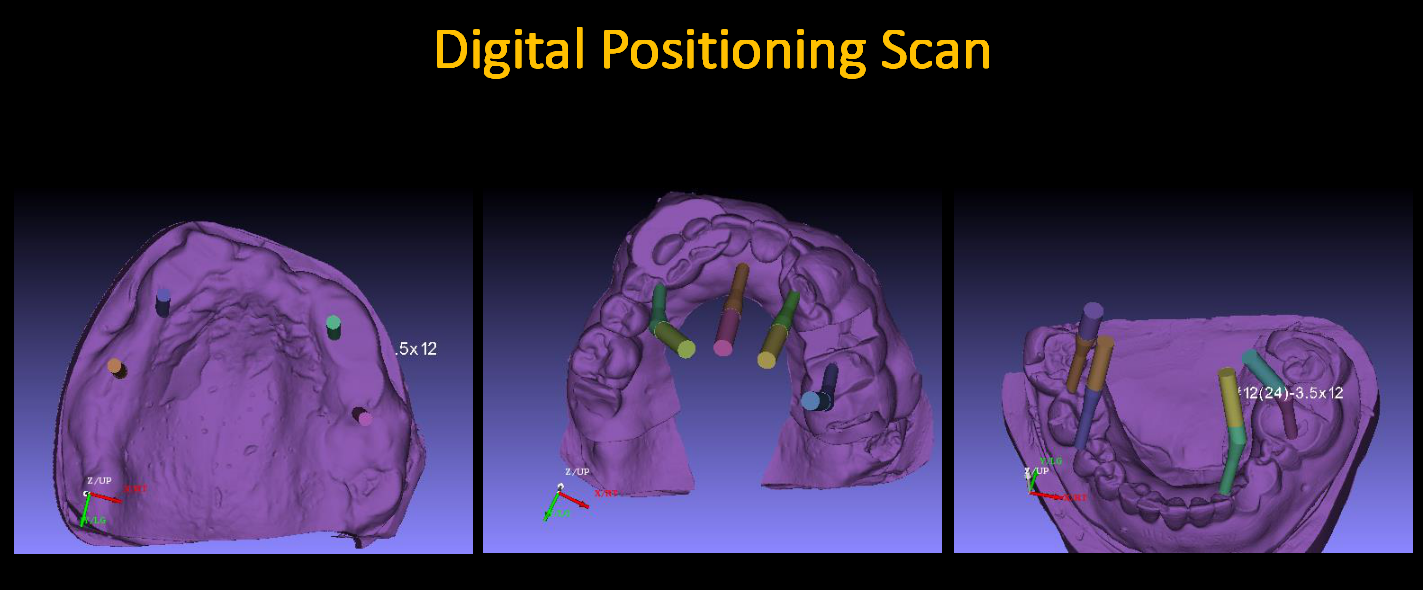

Digital_Positioning_Scan_2

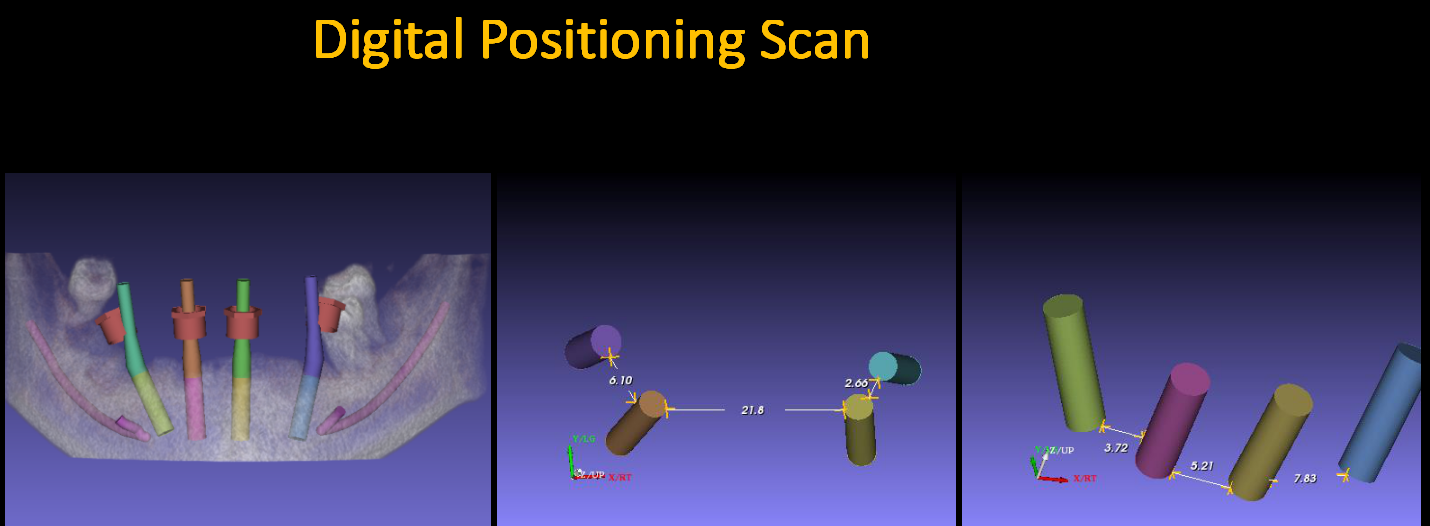

Digital_Positioning_Scan_3

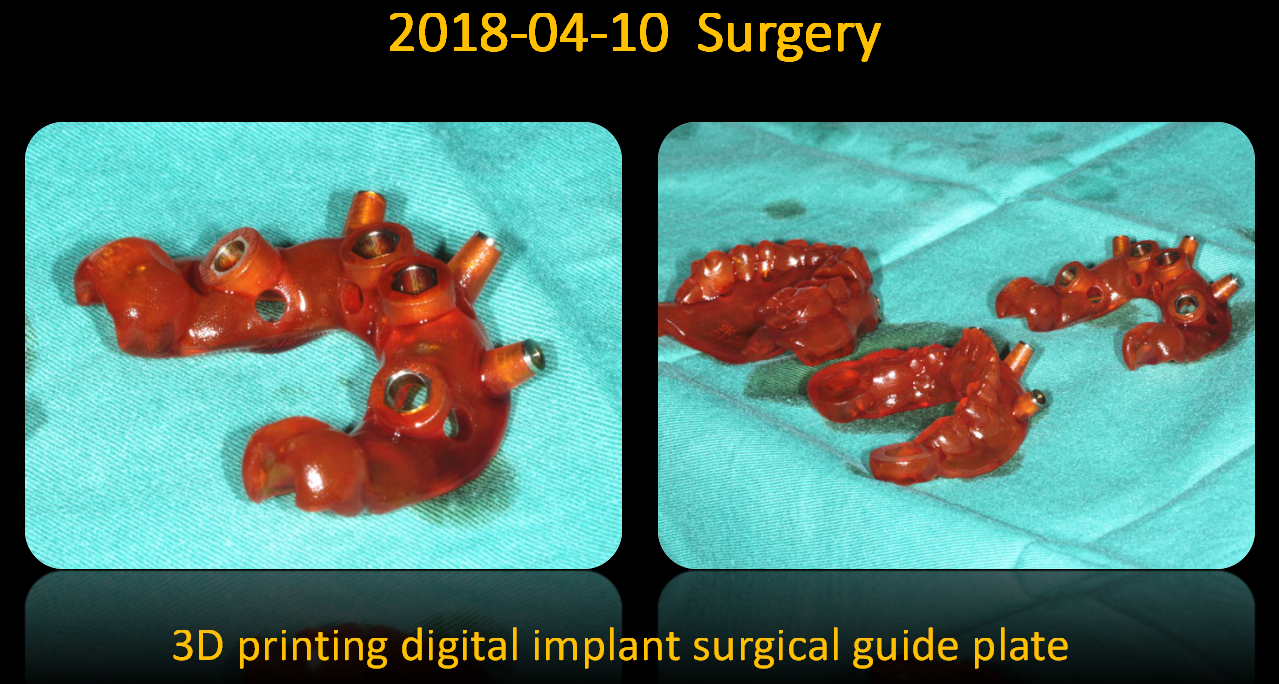

3D_printing_digital_implant_surgical_guide_plate

Try_on_the_guide_plate_inside_the_mouth_of_implant_operation

The_holes_were_prepared_step_by_step_under_the_guidance_of_the_implant_surgical_guide_plate

Implant placement was performed one by one according to the reaming position of the guide plate

Implant_implantation_and_suture_were_completed

make_temporary_denture

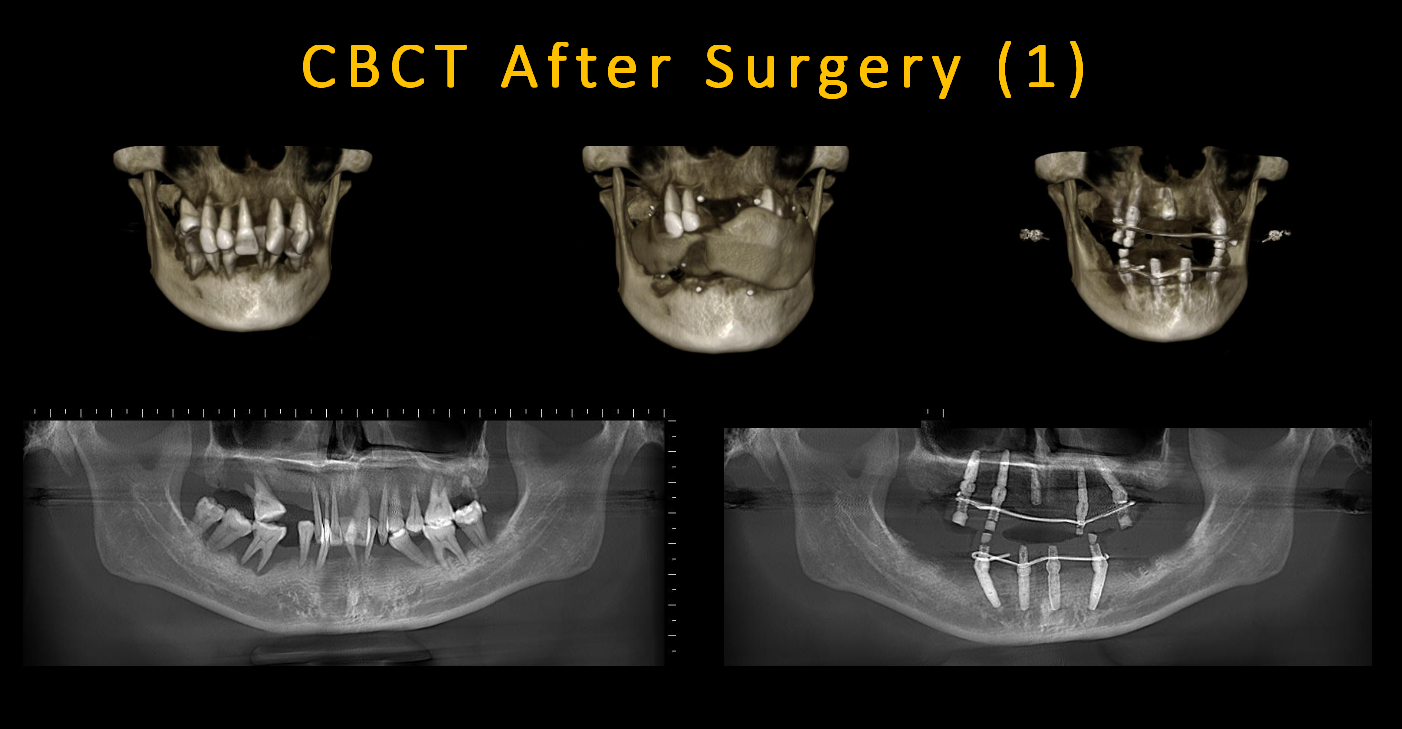

CBCT_After_Surgery_(1)

CBCT_After_Surgery_(2)

CBCT_After_Surgery_(3)

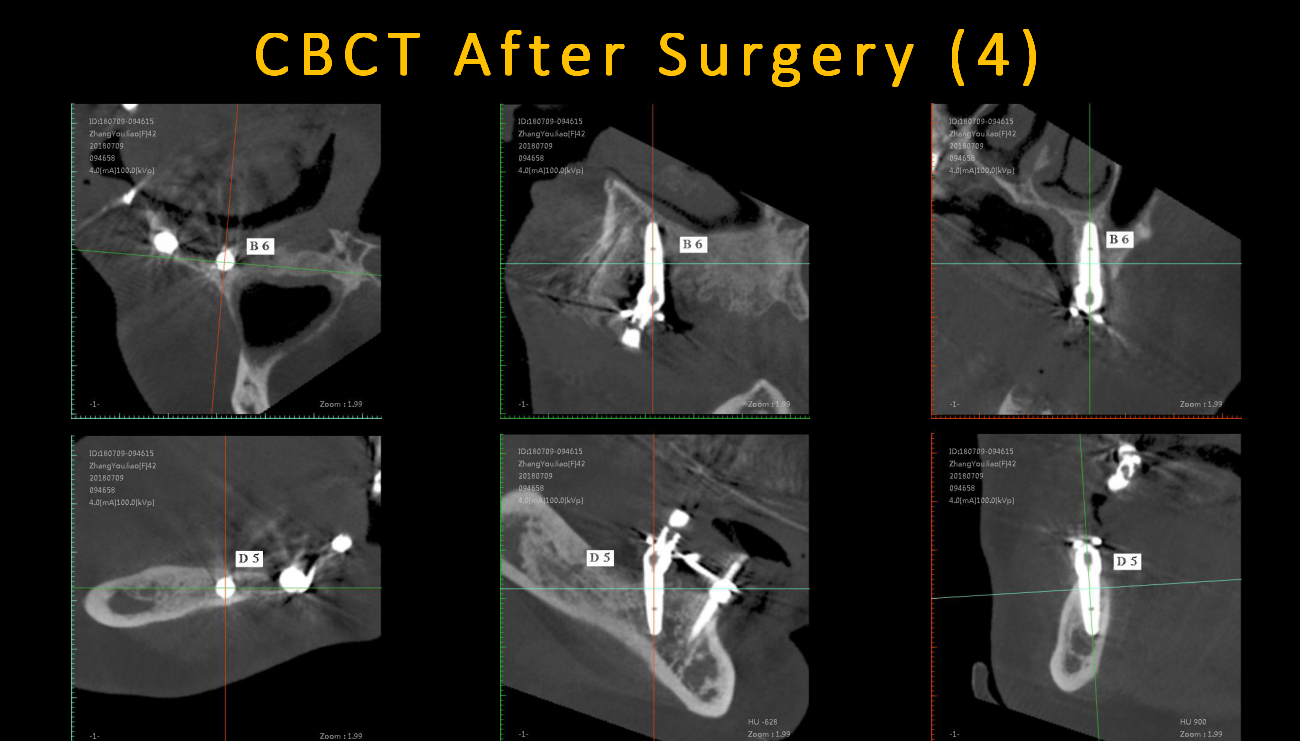

CBCT_After_Surgery_(4)

CBCT_After_Surgery_(5)

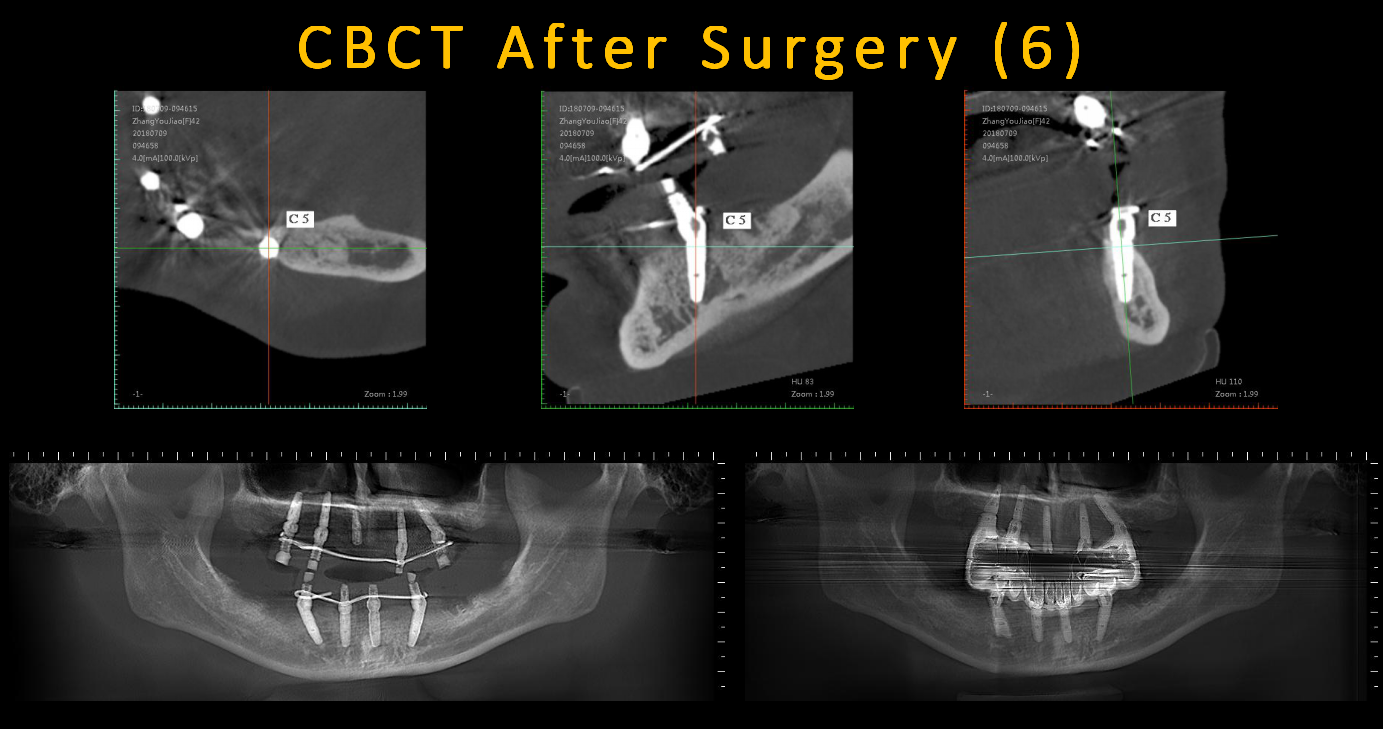

CBCT_After_Surgery_(6)

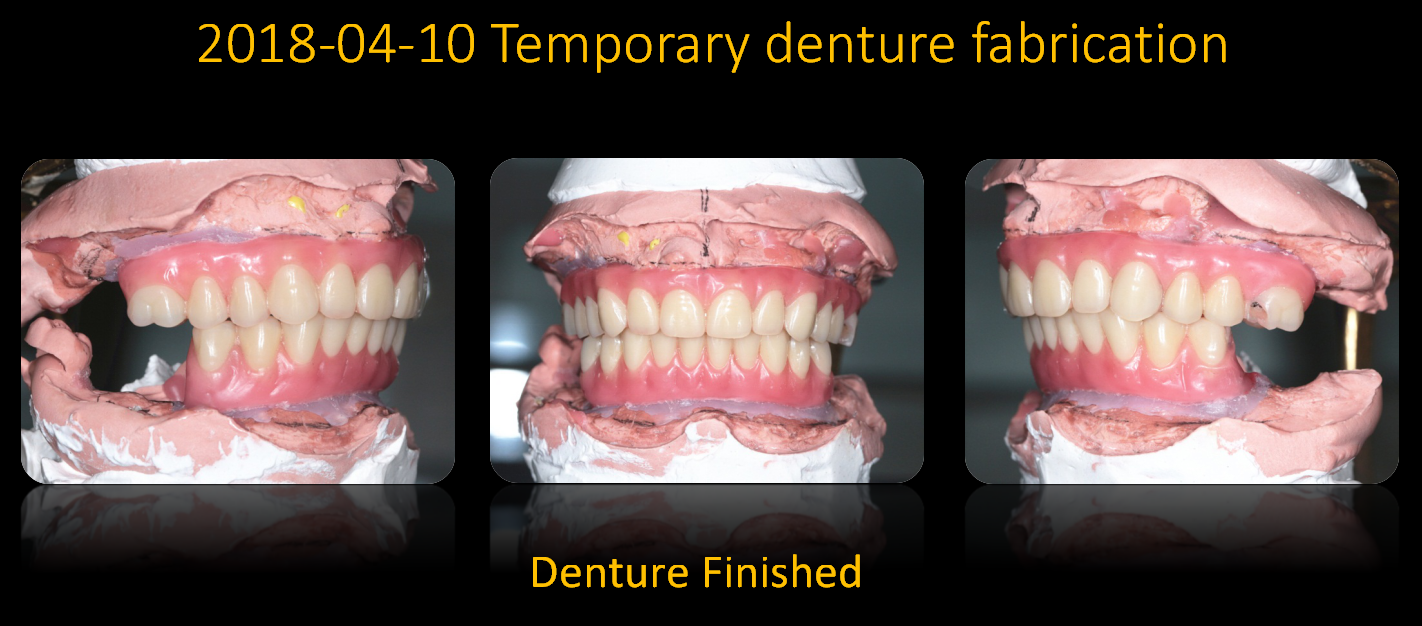

Temporary_denture_fabrication

Temperorary_denture_finished

Denture_complication

Photos_in_mouth_after_3_months_1

Photos_in_mouth_after_3_months_2

smile_photos_after_3_months
